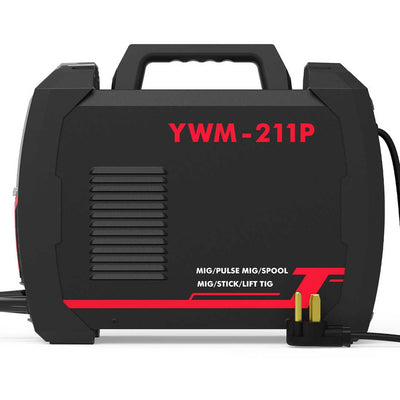

YWM-211P
The powerful YesWelder YWM-211P multi-process MIG welder has a convenient pulse and double pulse function and works with up to 200 amps. The extensive double pulse function in MIG welding prevents materials from burning through and reduces deformation due to heat. Therefore, the welder is particularly suitable for welding thin sheets and materials that may be heated only slightly. Welds up to 1/4" aluminum, stainless and mild steel.
FEATURES
- MIG Synergistic & Manual Setting on MIG function, straightforward operation.
- Multi processes in 1: Synergic MIG /Manual MIG/Single Pulse MIG /Double Pulse MIG/ Lift TIG (TIG torch not included)/ Stick.
- Double Pulse Available.
- Spool Gun Compatible Aluminum MIG Welding Available.
- Apply to wire spool diameter: D100/D200 rolls (ā¤10lbs) of MIG wire.
- Can take up to .023"-.035"carbon steel/ stainless steel wire and .035"-.045" alluminum wire.
- Dual Voltage: 110V and 220V, meet household DIY and industrial usage.
- Capability for Steel, Stainless Steel, Aluminum.
- Suitable for E7018/6011/E6010 Electrode.
Multi-ProcessĀ
Capable of MIG, Pulse MIG, Stick and TIG into one lightweight package.
Wide Application
This welder is suitable for stainless steel, mild steel,aluminium, widely used in industry and home.
Dual Voltage
Capable to run directly on 220 V (Ā±10%) 50/60 Hz power or on 110 V (Ā±10%) 50/60 Hz with the use of a power adapter.
Multi-Process
Synergic MIG /Manual MIG/Single Pulse MIG /Double Pulse MIG/Lift TIG (TIG torch not included) Stick
Shield gas for MIG welding: Fe AR 75% CO2 25%/SS AR 98% CO2 2%, Fe CO2 100%, Al AR 100%, 5/8"-18RH gas fitting easy to install and remove.
Suitable for 7018/6011/6010 Electrode for Stick welding, offer additional functions such as VRD, Anti-stick, hot start, and arc force adjustment.
Lift TIG welding optional with an additional WP-17V-35 TIG torch.
Alternative MIG Setting
Synergic MIG Setting
It is an excellent choice for beginner and occasional welders just getting into the world of welding.
The smart synernic MIG set allows automatic change of the voltage & wire feeding speed by adjusting the amperage.
It is available in MIG mode with specific -Syn on or in Pulse MIG mode.
Manual MIG Setting
Seasoned welders can use manual control mode ( with specific -Syn-off in MIG mode) to fine-tune the machine by by adjusting the voltage & wire feeding speed separately. (The amperage will change with the wire speed.)
Note: Spool gun is only available in manual control mode.
Pulse MIG Welding
Pulse MIG offers fast, high-quality, low spatter, and consistently great-looking welds with better thermal control than conventional MIG welders. As a result, pulse allows successful welding at lower temperatures with much better control of the weld pool.
A double pulse is better than a single pulse because it combines pulsing within pulsing. Both high and low background currents have their own high and low backgrounds.
The Double Pulse MIG function comes with two different pulses and could have better control over the pulsing waveform to manage heat input exceptionally well.
Pulse MIG Vs. AC TIG
In double pulse MIG, whenever the high pulse (with its own high and low output) switches to a low pulse (again, it has its own high and low), the puddle experiences a similar phenomenon to when you dab a TIG filler rod into the joint.
Essentially, this double pulsing action lets you create the āstack of dimesā weld appearance associated with the TIG welding process.
Weld quality and finish are comparable or very close to TIG in many applications.
Superior speed and efficiency vs. TIG
Compared to TIG, it typically requires less skill and is easier to learn, which reduces training time.
Various Torch Selection
Set torch operation 2T/4T/4TL/spot.
2T Mode:
1.Push the torch trigger: the arc is ignited, and the machine goes to the selected working amperage.
2.Release the torch trigger: current drops and arc stop.
4T Mode:
1.Push the torch trigger: the arc is ignited, and the machine starts to arc the selected working amperage.
2.Release it: stay at the working amperage.
3. Push it again: the amperage slops down to the ending amperage (pilot arc current 12).
4. Release it: arc stops.
4TL Mode:
1.Push the torch trigger: the arc is ignited and currently reaches the start amperage(initial arc current I1).
2.Release it: the machine will slope up to the selected welding amperage.
3. Push it again: the amperage slops down to the finishing amperage (pilot arc current I2).
4. Release it: arc stops.
Spot Welding Mode:
1. Push the torch trigger: the arc is ignited, and the current rises to the preset value.
2. When the spot welding time is up, the current drops gradually, and the arc stops.
Color Led Screen
The control panel features a infinitely adjustable knob that will help you select the output current and voltage, wire feed speed, and post-flow and pre-flow. The exact settings and values are shown on the well-visible color LCD screen.
In addition, welders can utilize simple buttons to select between the welding process (MIG, TIG, Stick), torch mode (2T/4T/4TL and Spot), and Wire diameter (.023-.45ā³), weld specifications (pulse or other parameters) and wire type.
Digital functions are well-tailored for seasoned welders who like to fine-tune their machines. However, YesWelder didnāt forget the needs of the beginners, so there is a Synergic MIG control.
Job Memory Function
The Memory function allows preferences and parameters to be set to complete recurring jobs efficiently and quickly. Jobs and parameters can be restored. This enables convenient work without wasting time on set-up.
The memory job can be recalled to reveal and use the weld parameters stored, and weld parameters can be further adjusted and stored as required.
Up to 10 memory options for each type of welding can be memorized and stored for recall.
Specification
Product weight: 41lb
Product Dimensions: 21.65"*14.17"*17.52"
Supply Voltage: 110V/220V 50/60 Hz
Input Current: 35A@220Vļ¼50A@110V
Output Current:
MIG 30-200A, Stick 10-200A,Lift TIG 20-180A@220V
MIG 30-160A, Stick 10-160A,Lift TIG 20-145A@110A
Duty Cycle:
MIG:60% @160A, 100% @123A@110V
60% @200A, 100% @158A@220V
Lift TIG:60% @160A, 100% @124A@110V
60% @200A, 100% @155A@220V
Stick:60% @145A, 100% @112A@110V
60% @200A, 100% @139A@220V
Suitable Electrode: E7018/E6011/E6010
Electrode Diameter: up to 5/32".
Workpiece Thickness: up to 15/64".
Welding Material: Carbon Steel/Stainless Steel, Aluminum
Protection Class: IP21S
